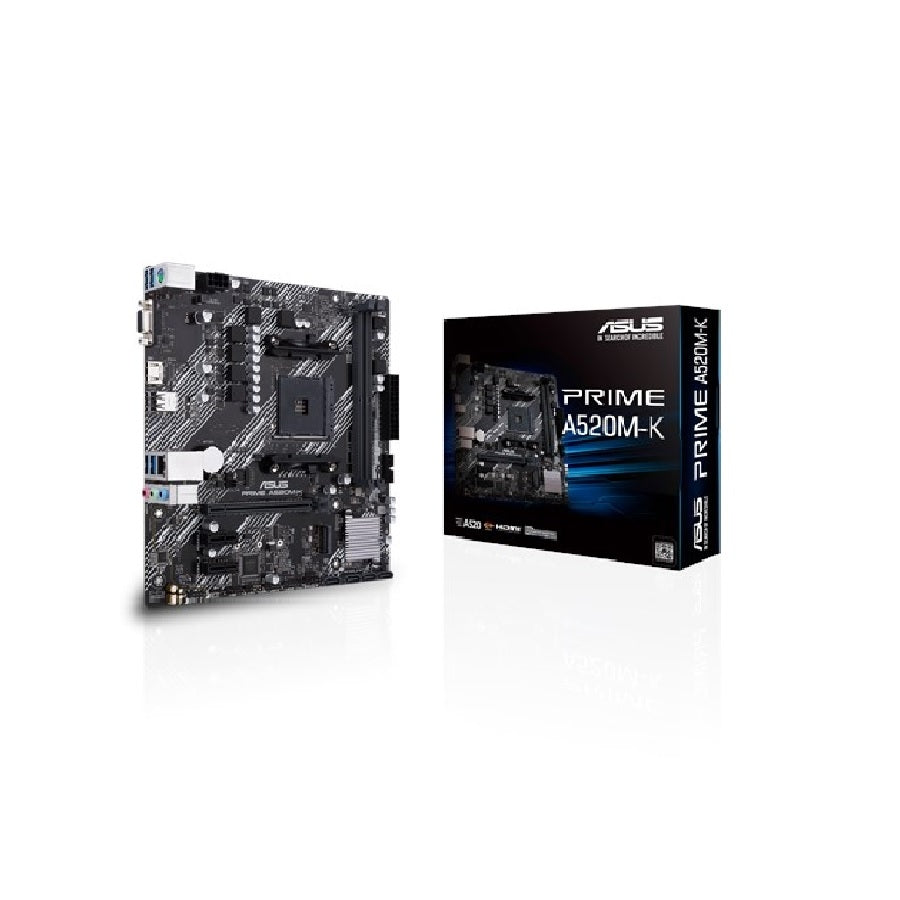

MB ASUS A520 AMD S-AM4 3A GEN/2X DDR4 2800/HDMI/VGA/M.2/4X USB3.2/MICRO ATX/GAMA BASICA

Descripción Comercial

TARJETA MADRE MICRO ATX AMD A520 (RYZEN AM4) CON SOPORTE M.2, ETHERNET DE 1 GB, HDMI / D-SUB, SATA 6 GBPS, USB 3.2 GEN 1 TIPO ASOCKET AMD AM4: LISTO PARA AMD RYZEN™ DE TERCERA GENERACIóN Y AMD RYZEN™ DE TERCERA GENERACIóN CON PROCESADORES GRáFICOS RADEON™.REFRIGERACIóN COMPLETA: DISIPADOR DE CHIPSET Y FAN XPERT.CONECTIVIDAD ULTRARRáPIDA: COMPATIBILIDAD CON M.2, ETHERNET DE 1 GB, USB 3.2 GEN 2 TIPO A.5X PROTECTION III: MúLTIPLES PROTECCIONES DE HARDWARE PARA LA PROTECCIóN INTEGRAL DEL SISTEMA.

Ficha Técnica

CPUBUILD IN AMD AM4 SOCKET PROCESSORS ** REFER TO WWW.ASUS.COM FOR CPU SUPPORT LISTCHIPSETAMD A520MEMORIA2 X DIMM, MAX. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHZ UN-BUFFERED MEMORY *DUAL CHANNEL MEMORY ARCHITECTUREECC MEMORY (ECC MODE) SUPPORT VARIES BY CPU.* REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS).* THE MAXIMUM MEMORY FREQUENCY SUPPORTED VARIES BY PROCESSOR.GRáFICA1 X D-SUB1 X HDMI 2.1(4K@60HZ)PUERTOS DE EXPANSIóN3RD GEN AMD RYZEN™ AND 3RD GEN AMD RYZEN™ WITH RADEON™ GRAPHICS PROCESSORS1 X PCIE 3.0 X16 (X16 MODE)AMD A520 CHIPSET2 X PCIE 3.0 X1ALMACENAMIENTOTOTAL SUPPORTS 1 X M.2 SLOT(S) AND 4 X SATA 6GB/S PORTS3RD GEN AMD RYZEN™ AND 3RD GEN AMD RYZEN™ WITH RADEON™ GRAPHICS PROCESSORS :1 X M.2 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280 (PCIE 3.0 X4 AND SATA MODES) STORAGE DEVICES SUPPORTAMD A520 CHIPSET :4 X SATA 6GB/S PORT(S),SUPPORT RAID 0, 1, 10LANREALTEK RTL8111H 1GB ETHERNETASUS LANGUARDAUDIOREALTEK ALC887 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC *- SUPPORTS : JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING, UP TO 24-BIT/192KHZ PLAYBACKAUDIO FEATURE :- AUDIO SHIELDING- DEDICATED AUDIO PCB LAYERS* CHOOSE THE CHASSIS WITH HD AUDIO MODULE IN FRONT PANEL TO SUPPORT 8-CHANNEL AUDIO OUTPUT.PUERTOS USBREAR USB PORT ( TOTAL 6 )4 X USB 3.2 GEN 1 PORT(S)(4 X TYPE-A)2 X USB 2.0 PORT(S)(2 X TYPE-A)FRONT USB PORT ( TOTAL 6 )2 X USB 3.2 GEN 1 PORT(S)(2 X TYPE-A)4 X USB 2.0 PORT(S)(4 X TYPE-A)SOFTWARE FEATURESASUS EXCLUSIVE SOFTWAREARMOURY CRATEAI SUITE 3- PERFORMANCE AND POWER SAVING UTILITYTURBOV EVOEPUDIGI+ VRMFAN XPERT- EZ UPDATEASUS CPU-ZAI CHARGERDAEMON TOOLSNORTON ANTI-VIRUS SOFTWARE (FREE TRIAL FOR 60 DAYS)WINRARUEFI BIOSASUS EZ DIY- ASUS CRASHFREE BIOS 3- ASUS EZ FLASH 3- ASUS UEFI BIOS EZ MODEASUS SPECIAL FEATURESASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGUARD- ASUS OVERVOLTAGE PROTECTION- ASUS SAFESLOT CORE- ASUS STAINLESS-STEEL BACK I/OASUS Q-DESIGN- ASUS Q-DIMM- ASUS Q-SLOTASUS THERMAL SOLUTION- ALUMINUM HEATSINK DESIGNPUERTOS POSTERIORES I/O1 X PS/2 KEYBOARD/MOUSE COMBO PORT(S)1 X D-SUB1 X HDMI1 X LAN (RJ45) PORT(S)4 X USB 3.2 GEN 1 (BLUE) TYPE-A2 X USB 2.03 X AUDIO JACK(S)INTERNAL I/O1 X CPU FAN CONNECTOR(S)1 X CHASSIS FAN CONNECTOR(S)1 X USB 3.2 GEN 1(UP TO 5GBPS) CONNECTOR(S) SUPPORT(S) ADDITIONAL 2 USB 3.2 GEN 1 PORT(S)2 X USB 2.0 CONNECTOR(S) SUPPORT(S) ADDITIONAL 4 USB 2.0 PORT(S)1 X M.2 SOCKET 3 WITH M KEY, TYPE 2242/2260/2280 STORAGE DEVICES SUPPORT (SATA & PCIE 3.0 X 4 MODE)1 X SPI TPM HEADER4 X SATA 6GB/S CONNECTOR(S)1 X S/PDIF OUT HEADER(S)1 X 24-PIN EATX POWER CONNECTOR(S)1 X 8-PIN EATX 12V POWER CONNECTORS1 X FRONT PANEL AUDIO CONNECTOR(S) (AAFP)1 X CLEAR CMOS JUMPER(S)1 X SYSTEM PANEL CONNECTOR1 X COM PORT HEADER1 X SPEAKER CONNECTORACCESORIOSUSERS MANUALI/O SHIELD2 X SATA 6GB/S CABLE(S)1 X SUPPORTING DVD1 X M.2 SSD SCREW PACKAGE(S)BIOS256 MB FLASH ROM, UEFI AMI BIOSMANEJOWOL BY PME, PXESISTEMA OPERATIVOWINDOWS® 10 64-BITFORM FACTORMATX FORM FACTOR8.9 INCH X 8.7 INCH ( 22.6 CM X 22.1 CM )
