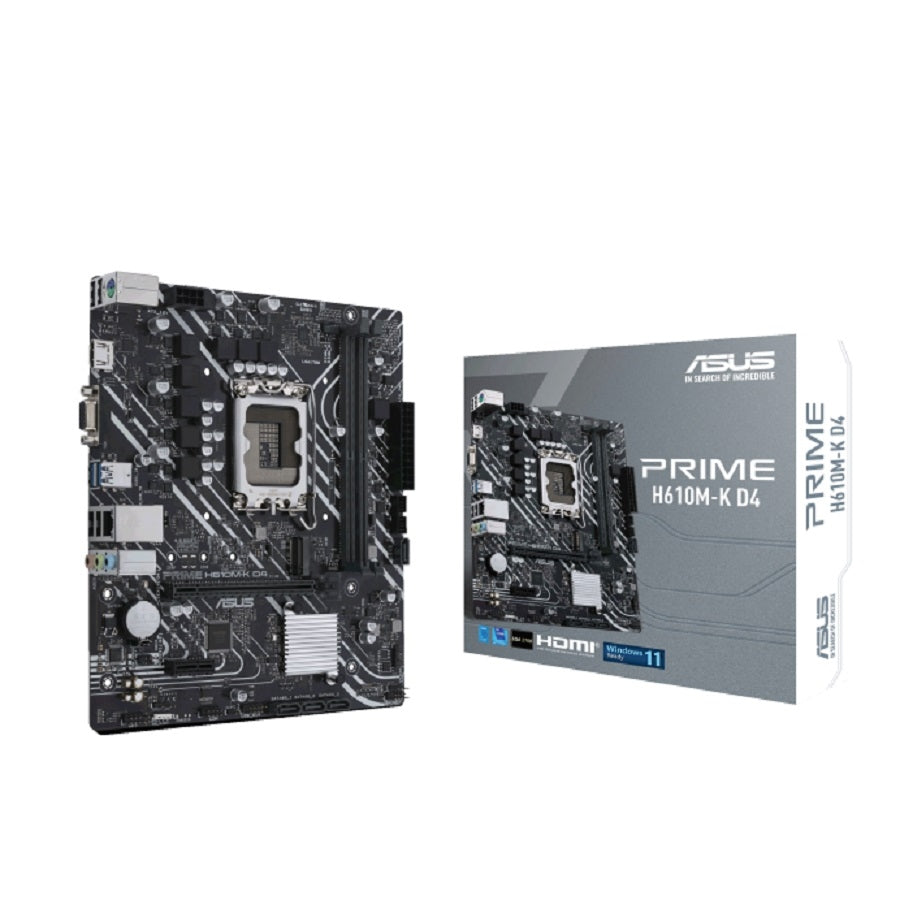

MB ASUS H610 INTEL S-1700 12A GEN/2X DDR4 2666/HDMI/D-SUB/M.2/2X USB3.2/MICRO ATX/GAMA BASICA

Descripción Comercial

TARJETA MADRE INTEL® H610 (LGA 1700) MIC-ATX CON DDR4, PCIE 4.0, PUERTO M.2, REALTEK 1 GB ETHERNET, HDMI®, D-SUB, PUERTOS USB 3.2 GEN 1, SATA 6 GBPS, PUERTO COM Y PUERTO RGBSOCKET INTEL® LGA 1700: LISTO PARA PROCESADORES INTEL® DE 12A GEN.REFRIGERACIóN COMPLETA: DISIPADOR DE CALOR PCH Y FAN XPERT.CONECTIVIDAD ULTRARRáPIDA: PUERTO M.2 DE 32 GBPS, ETHERNET REALTEK DE 1GB Y USB 3.2 GEN 1.5X PROTECTION III: MúLTIPLES PROTECCIONES DE HARDWARE PARA UNA PROTECCIóN COMPLETA.

Ficha Técnica

CPUINTEL® SOCKET LGA1700 FOR 12TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS*SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0*** REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES.CHIPSETINTEL® H610 CHIPSETMEMORY2 X DIMM, MAX. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 NON-ECC, UN-BUFFERED MEMORY*DUAL CHANNEL MEMORY ARCHITECTURESUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP)* ACTUAL MEMORY DATA RATE DEPENDS ON THE CPU TYPES AND DRAM MODULES, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR MEMORY SUPPORT LIST.GRAPHICS1 X D-SUB PORT1 X HDMI® PORT*** GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES.** SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1.EXPANSION SLOTSINTEL® 12TH GEN PROCESSORS1 X PCIE 4.0 X16 SLOTINTEL® H610 CHIPSET1 X PCIE 3.0 X1 SLOTSTORAGETOTAL SUPPORTS 1 X M.2 SLOT AND 4 X SATA 6GB/S PORTSINTEL® H610 CHIPSETM.2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X4 & SATA MODES)4 X SATA 6GB/S PORTS* THE M.2 SLOT SHARES BANDWIDTH WITH THE SATA6G_4 PORT. WHEN A DEVICE IN SATA MODE IS INSTALLED ON THE M.2 SLOT, THE SATA6G_4 PORT CANNOT BE USED.ETHERNET1 X REALTEK 1GB ETHERNETUSBREAR USB (TOTAL 6 PORTS)2 X USB 3.2 GEN 1 PORTS (2 X TYPE-A)4 X USB 2.0 PORTS (4 X TYPE-A)FRONT USB (TOTAL 4 PORTS)1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS1 X USB 2.0 HEADER SUPPORTS ADDITIONAL 2 USB 2.0 PORTSAUDIOREALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC*- SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING- SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACKAUDIO FEATURES- AUDIO SHIELDING- DEDICATED AUDIO PCB LAYERS* A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT.BACK PANEL I/O PORTS2 X USB 3.2 GEN 1 PORTS (2 X TYPE-A)4 X USB 2.0 PORTS (4 X TYPE-A)1 X D-SUB PORT1 X HDMI® PORT1 X REALTEK 1GB ETHERNET PORT3 X AUDIO JACKS1 X PS/2 KEYBOARD/MOUSE COMBO PORTINTERNAL I/O CONNECTORSFAN AND COOLING RELATED1 X 4-PIN CPU FAN HEADER1 X 4-PIN CHASSIS FAN HEADERPOWER RELATED1 X 24-PIN MAIN POWER CONNECTOR1 X 8-PIN +12V POWER CONNECTORSTORAGE RELATED1 X M.2 SLOT (KEY M)4 X SATA 6GB/S PORTSUSB1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS1 X USB 2.0 HEADER SUPPORTS ADDITIONAL 2 USB 2.0 PORTSMISCELLANEOUS1 X RGB HEADER1 X CLEAR CMOS HEADER1 X COM PORT HEADER1 X FRONT PANEL AUDIO HEADER (AAFP)1 X S/PDIF OUT HEADER1 X SPEAKER HEADER1 X SPI TPM HEADER (14-1PIN)1 X 10-1 PIN SYSTEM PANEL HEADERSPECIAL FEATURESASUS 5X PROTECTION III- DIGI+ VRM- LANGUARD- OVERVOLTAGE PROTECTION- SAFESLOT CORE- STAINLESS-STEEL BACK I/OASUS Q-DESIGN- Q-DIMM- Q-SLOTASUS THERMAL SOLUTION- ALUMINUM HEATSINK DESIGNASUS LIGHTING CONTROL- RGB HEADERSOFTWARE FEATURESASUS EXCLUSIVE SOFTWAREARMOURY CRATEAI SUITE 3- PERFORMANCE AND POWER SAVING UTILITYTURBOV EVOEPUDIGI+ VRMFAN XPERTASUS CPU-ZNORTON ANTI-VIRUS SOFTWARE (FREE TRIAL VERSION)WINRARUEFI BIOSASUS EZ DIY- ASUS CRASHFREE BIOS 3- ASUS EZ FLASH 3- ASUS UEFI BIOS EZ MODEBIOS128 MB FLASH ROM, UEFI AMI BIOSMANAGEABILITYWOL BY PME, PXEACCESSORIESCABLES2 X SATA 6GB/S CABLESMISCELLANEOUS1 X I/O SHIELD1 X M.2 ANCHORINSTALLATION MEDIA1 X SUPPORT DVDDOCUMENTATION1 X USER GUIDEOPERATING SYSTEMWINDOWS® 11 64-BIT, WINDOWS® 10 64-BITFORM FACTORMATX FORM FACTOR9.2 INCH X 8.0 INCH ( 23.4 CM X 20.3 CM )
